You've done the research, picked the right water softener for your home, and now installation day is around the corner. This is where things start to feel a little uncertain for most homeowners. What actually happens? How long will the water be off? Will it be disruptive?
The good news is that a water softener installation is far less complicated than most people expect. If you're going the DIY route or having a plumber handle it, the process follows a fairly predictable sequence. Knowing what's coming makes the whole thing a lot less stressful. At Aquasure, we've put together this guide so you know exactly what to expect, start to finish.
What Is a Water Softener Installation, and Why Does It Matter?
A water softener works by connecting directly to your home's main water line, treating all the water that flows through your home before it reaches your taps, appliances, and pipes. Getting the installation right matters because a poorly installed system won't perform the way it should and could cause pressure issues or leaks down the line.
Most installations take between two and four hours for a standard system. If you're replacing an older unit, it can be done in under an hour. Complex plumbing, older pipes, or multi-stage water treatment setups will take longer, but it's rarely an all-day project.
Get the Space Ready Before Anyone Arrives
The most overlooked part of installation day is the prep work. Clear out the area where the softener will sit, typically a garage, utility room, or basement. Plan for roughly nine square feet of space, though the actual footprint will depend on the size of your system.
Your installer will need access to:
- The main water shut-off valve
- A nearby floor drain or standpipe
- A standard electrical outlet
- The cold water supply line
Also worth checking ahead of time: your incoming water pressure. It needs to fall between 20 and 125 psi, with 50 to 70 psi being the ideal daytime range. Pressure outside this range can affect system performance right from the start.
The Water Gets Shut Off First
Once everything is in place, the first step is to shut off the main water supply. This is temporary (usually no longer than an hour or two), but it's worth planning around. Avoid scheduling installation day on a day when you'll need heavy water access.
After the water is off, the lowest faucets in the house are opened to drain any remaining water from the pipes. This relieves pressure and allows it to be cut into the line safely.
The Main Line Gets Cut, and the Bypass Valve Goes In
The installer cuts into the cold water line after it enters the home, but before it branches off to the water heater. This positioning means both your hot and cold water will eventually be softened, though outdoor hose bibs are typically left on the unsoftened side.
A bypass valve is installed at the same time. This three-way valve is important because it lets you take the softener offline for maintenance without cutting off water to the whole house. It's a small component, but it makes future servicing significantly easier.

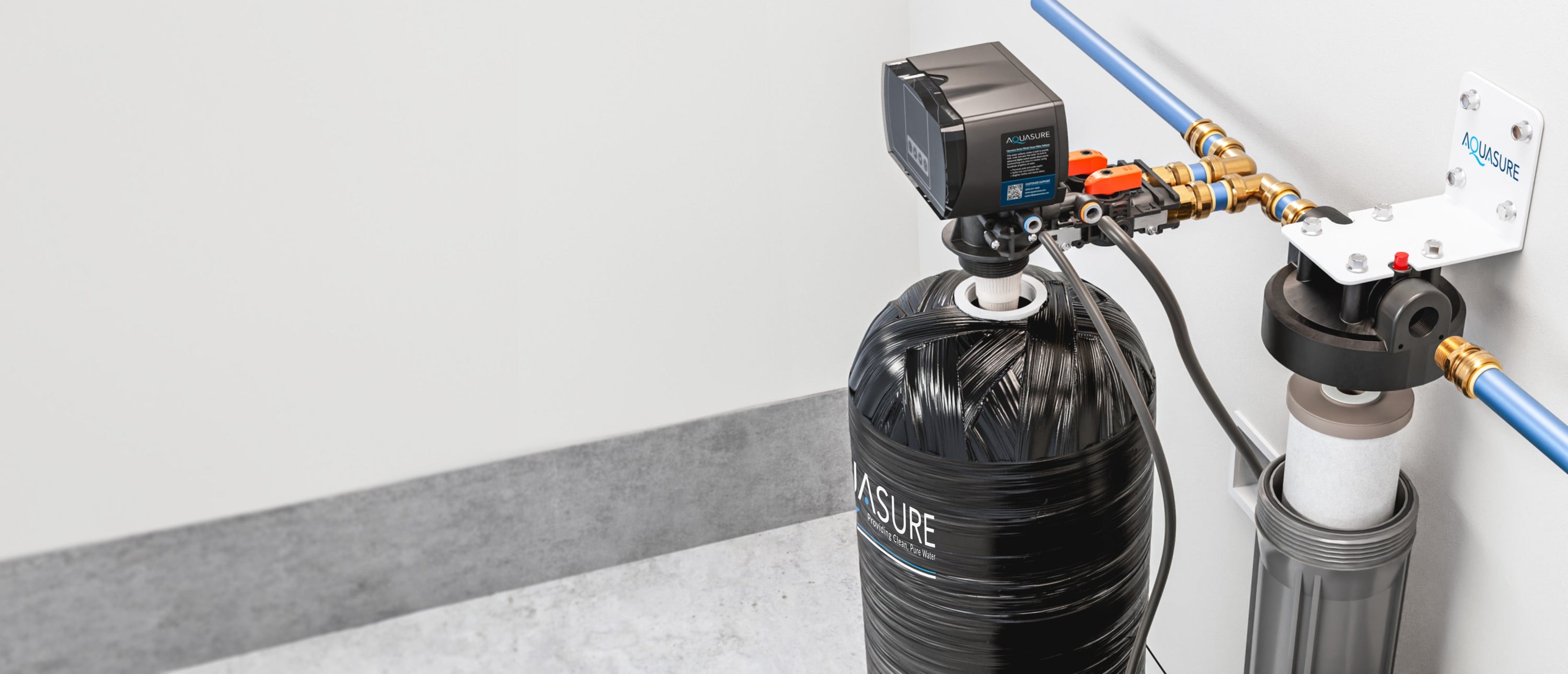

The Tanks Get Connected and the Drain Lines Run
The resin tank (the tall one) and the brine tank get positioned and connected to each other with tubing and clamps. Two separate drain lines are then run from the system to the nearest drain point:
- The main drain line handles the discharge water during regeneration cycles
- The overflow line acts as a safeguard if the brine tank fills beyond capacity
Both lines should slope downward toward the drain. Many local plumbing codes also require an air gap fitting. It’s a connection that prevents any backflow from re-entering the softener or your water supply. If you're doing a DIY water softener installation, check your local codes on this before you start.
Startup, Programming, and the First Regeneration Cycle
Once the tanks are connected and the drain lines are secured, the system gets powered up. The installer plugs it into a grounded outlet and walks through the programming. It sets the current time, your water's hardness level, household size, and regeneration frequency.
The brine tank is then filled with salt, and a manual regeneration cycle is triggered. This initial cycle takes around 80 to 90 minutes and is a normal part of the startup process. During this time, it's worth walking the connections and checking for any drips or leaks before full water pressure is restored.
Once everything checks out, the main water supply is turned back on. A hardness test is run to confirm the system is working correctly, and any final adjustments are made on the spot.
What Happens Right After a Water Softener with Installation Is Complete
Here's something worth knowing so it doesn't catch you off guard: your cold water will be soft almost immediately, but your hot water will take longer to soften.
The hot water tank starts out full of your existing hard water, and it has to cycle through before soft water replaces it. Depending on your water heater size and usage, this can take anywhere from a few hours to a couple of days.
Once the soft water is fully flowing through, you'll notice some real differences. Soap and shampoo will lather more easily, dishes will come out of the dishwasher without spots, and laundry will feel softer.
Your appliances will also start working more efficiently. Scale buildup inside water heaters, washing machines, and dishwashers is a direct result of hard water, and removing it from the equation extends the life of those appliances and reduces energy costs over time.
Keeping It Running After Installation Day
Once the system is in and working, maintenance is minimal. Check salt levels every one to four months, depending on your household size and water hardness. High-quality evaporated salt pellets tend to perform better and leave less residue in the brine tank.
Give the brine tank a light cleaning with mild detergent every few months to prevent buildup. The resin tank itself generally only needs professional servicing around every seven years under normal use.
When to Call a Water Softener Installation Plumber
DIY installation is absolutely manageable if you have basic plumbing confidence and a standard home setup. Many of our systems are designed for straightforward installation, and the instructions are detailed enough to follow without professional help.
That said, there are situations where calling a water softener installation plumber is the smarter move:
- Your home has older plumbing with non-standard fittings or visible corrosion
- Water pressure in your home fluctuates noticeably
- The installation requires cutting into tight or hard-to-access spaces
- You're not comfortable with any pipe cutting or soldering
Professional installation typically costs between $300 and $1,000, depending on your location and the complexity of the job. It adds to the upfront cost, but it also removes the risk of improper connections that could cause problems later.
Soft Water Is Worth the Setup
Installation day goes quickly, and the benefits start showing up almost immediately. From sparkling clean dishes and glassware, softer, cleaner laundry, and water that's gentler on skin, installing a water softener is a straightforward upgrade with long-term value.
To know more about what water softener setup is right for your home, we're here to help. Contact us at Aquasure today.
